Labels

Various labels are used in SIEVERS WMS. These are documented in the following sections. For terms or abbreviations that are difficult to understand, use the Index or the List of abbreviations.

Hinweis

Weights printed on labels are always rounded up to the last two decimal places.

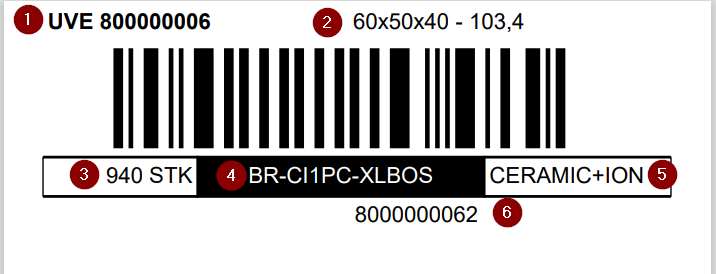

SPU

This label contains the following information:

  • Code
  • Dimensions
  • Regular barcode
  • Number of pieces

The barcode results from the code and the check digit according to modulo 10.

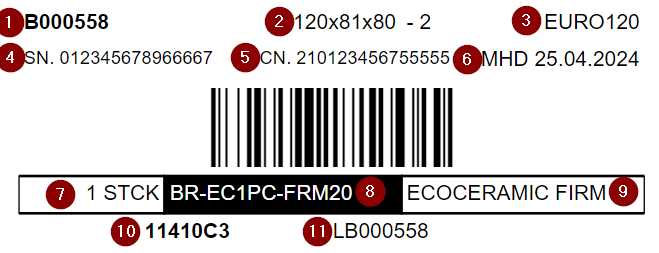

Inventory label or receipt

This label contains the following information:

  1. Inventory number (last 7 characters)
  2. Dimensions and gross weight
  3. Inventory measure
  4. Serial number (last 15 characters)
  5. Lot no. (last 15 characters)
  6. Sell-By Date
  7. Quantity
  8. Item number (last 14 characters)
  9. Item description
  10. Target or current storage place
  11. Inventory number (last 9 characters)

Hinweis

Do not use inventories to map packing hierarchies. In other words, please do not map a hierarchy in combination with Load Carriers. Load Carrier = pallet and inventory unit = sub-unit - such as carton on the pallet. To map packing hierarchies, [transport Load Carriers](#transportload carriercard) should always be used in combination with the Load Carrier. Inventories are important for item tracking, not for describing the physical or process-related status.

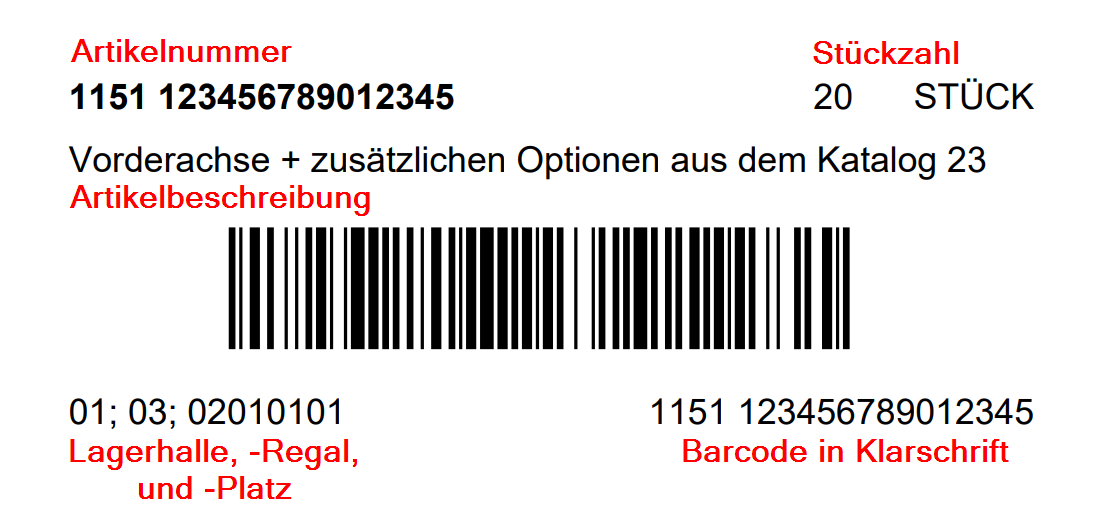

Item Label

The item label is used for additional labeling of an item. This can be useful in warehouse receipt, for example, if items need to be labeled separately. It can be printed via the item card via Actions or in the warehouse receipt via the Line menu of the document lines.

  • Dimensions: 90x35mm

The label contains the following information:

  • Item number
  • Abbreviated item description
  • Number of pieces
  • Warehouse
  • Storage Shelf
  • Storage place
  • Barcode
Hinweis

If the item is assigned to a master storage place or picking place, the master storage place is shown at the bottom left instead of the storage place.

Storage place label

You can print two different storage place labels:

  • Large: 101.6mm x 152.4mm
  • Small: 90mm x 33mm

You can decide before printing whether an arrow pointing up or down and a check digit should be printed on the side of the label.

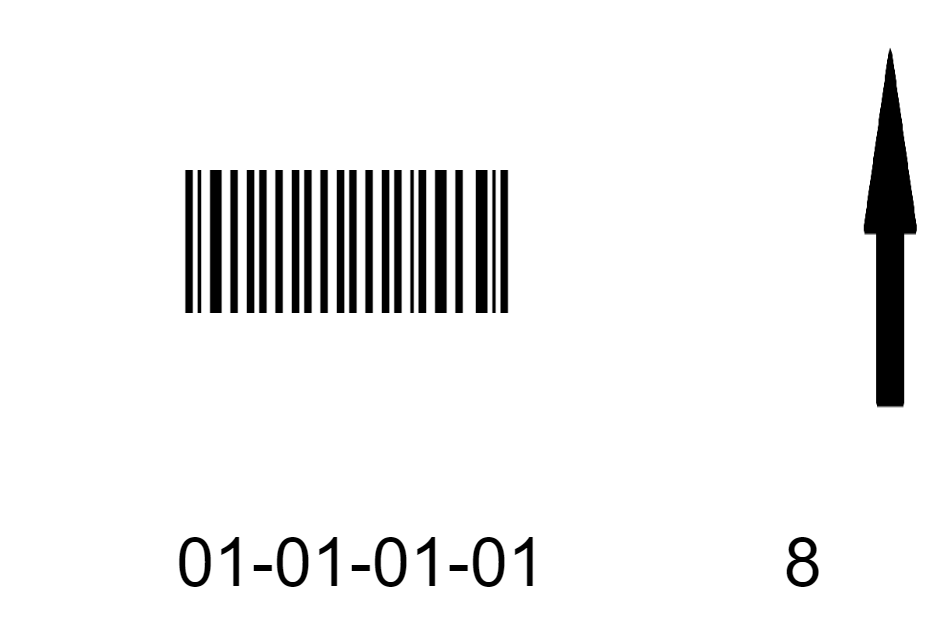

Storage place label large

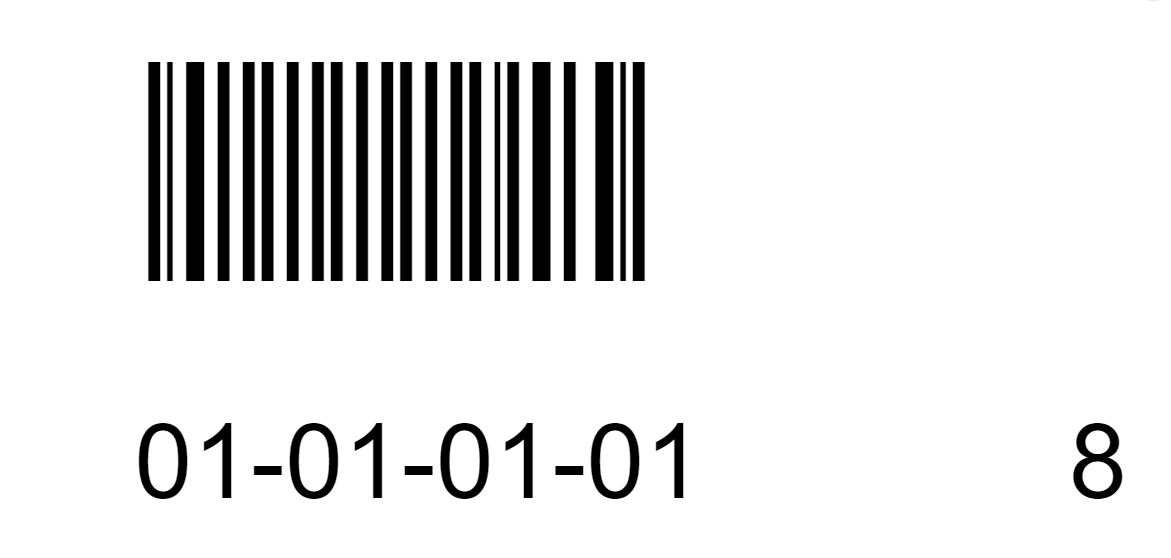

Storage place label small

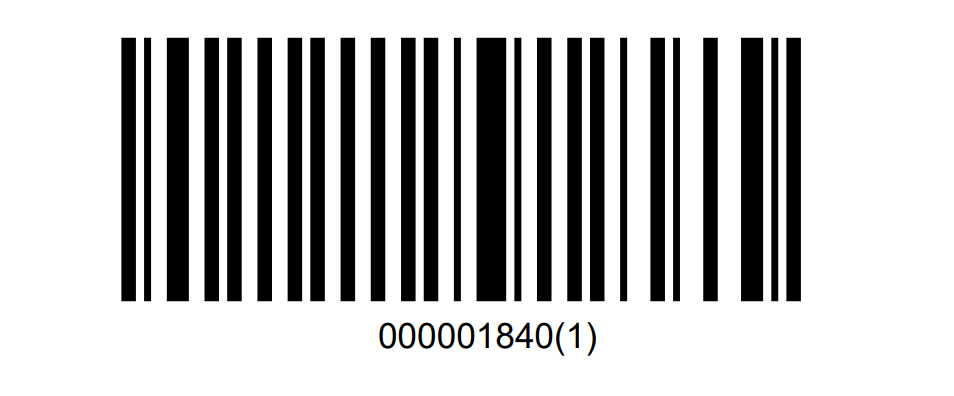

Blanco Barcode

  • Dimensions: 90x35mm

The label contains no information other than the barcode itself. It is printed in stock and made available to warehouse receipt. Incoming items or pallets are marked with the label and assigned to this number in the system. The label can also be used to measure times. For example, the unloading time is recorded when the barcode is scanned for the first time.

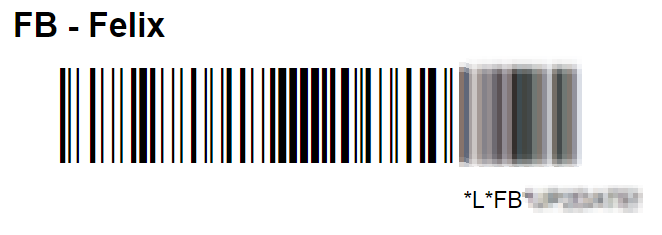

Login Barcode

The login barcode makes it easier to log in to the MDE device. You do not have to enter your user name and password, but simply scan the barcode.

  • Dimensions: 90x35mm

The barcode contains the user abbreviation, the user name and the password.

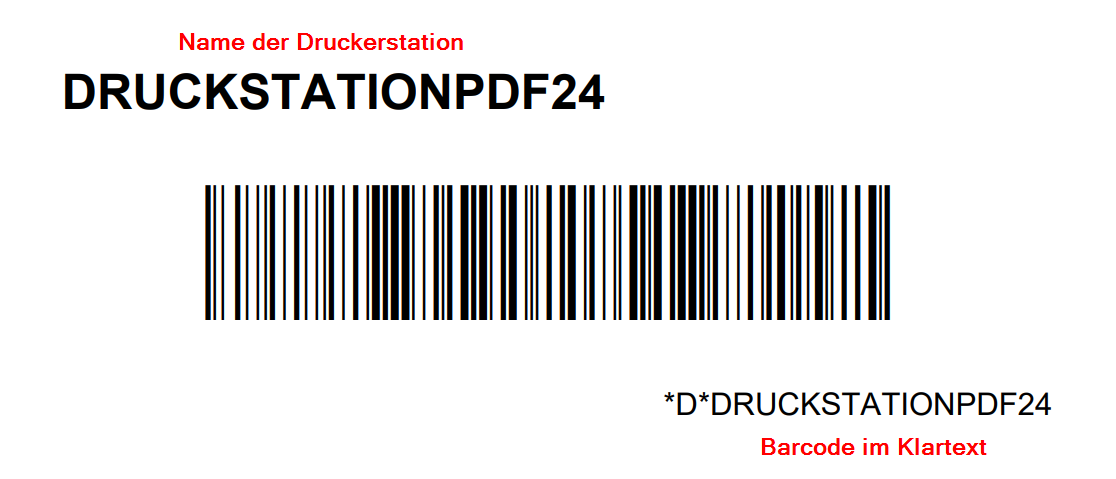

Printer Station Barcode

This label is visibly attached to the place of the printer station. Employees who are helping out in other areas for a short time, for example, can scan this barcode in the main menu of the MDE to change the printer station. You can print the label directly in the printer station card.

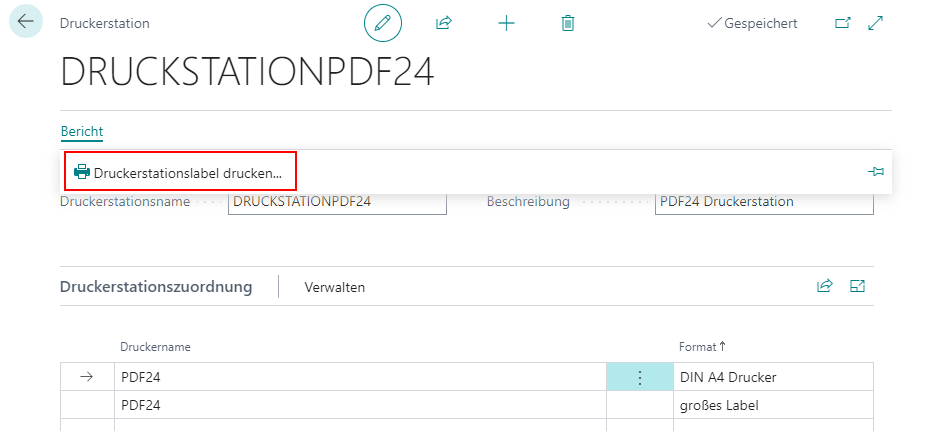

You can print the label here

  • Dimensions: 90x35mm

The label contains the following information:

  • Name of the printer station
  • Barcode
  • Barcode in plain text

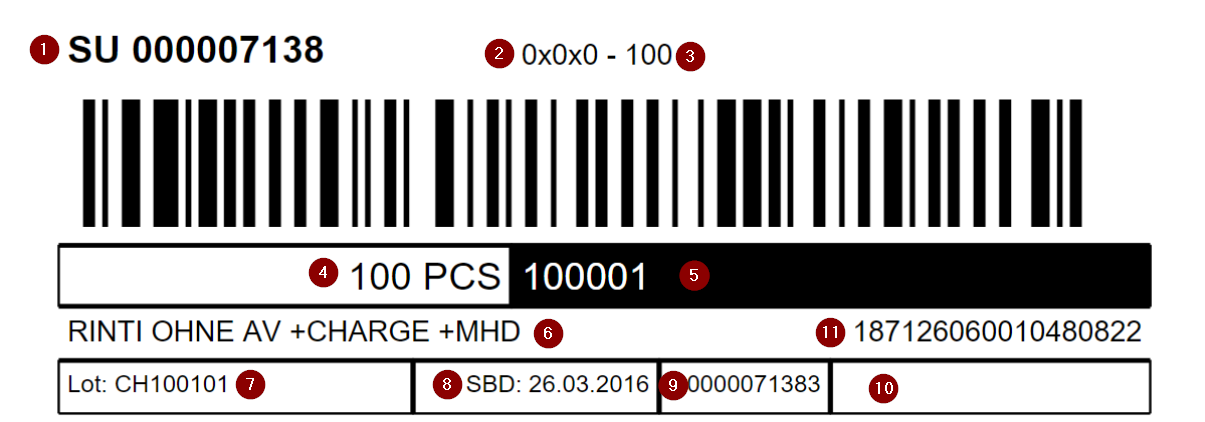

Storage Unit Label

This label is used to mark items arriving in warehouse receipt. Only load carriers that are still to go into the warehouse and have no order reference are marked with this label.

  • Dimensions: 90x35mm
  • Template dimensions: 88x33mm

The label contains the following information:

  1. Storage unit number
  2. Dimensions
  3. Weight (if available: weighed weight, otherwise gross weight of Load Carrier)
  4. Quantity
  5. Item number
  6. Item description
  7. Lot No.
  8. Sell-By Date
  9. Plain text barcode (If available: GS1 barcode)
  10. Comment text
  11. GS1 SSCC

WHS Receipt SU label

  • Dimensions: 90x35mm

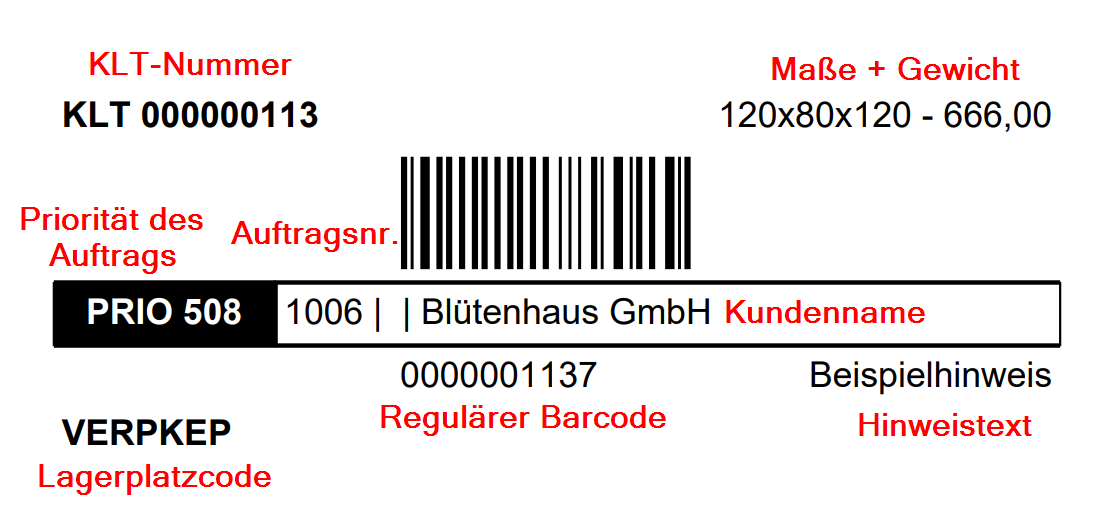

PTU label

  • Dimensions: 90x35mm

The order-related information on this label is taken either from the linked warehouse shipment or from the order or special order if the Load Carrier has already been assigned to the order in the warehouse receipt.

The label contains the following information:

  • PTU number
  • Dimensions
  • Weight
  • Priority of the order
  • Order no.
  • Customer name
  • Storage place code
  • Regular barcode
  • Comment text

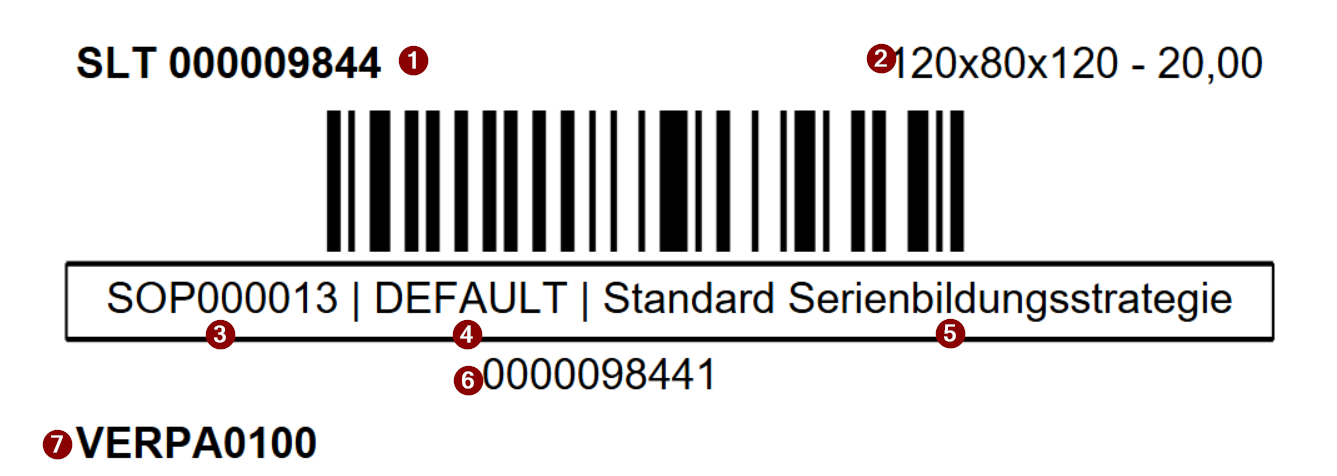

STU Label

  • Dimensions: 90x35mm

This label is used to mark carriers that are part of a picking series.

  1. STU Number
  2. Dimensions and Weight
  3. Picking Series No.
  4. Series Formation Strategy Code
  5. Series Formation Strategy Description
  6. Regular Barcode
  7. Storage Place Code

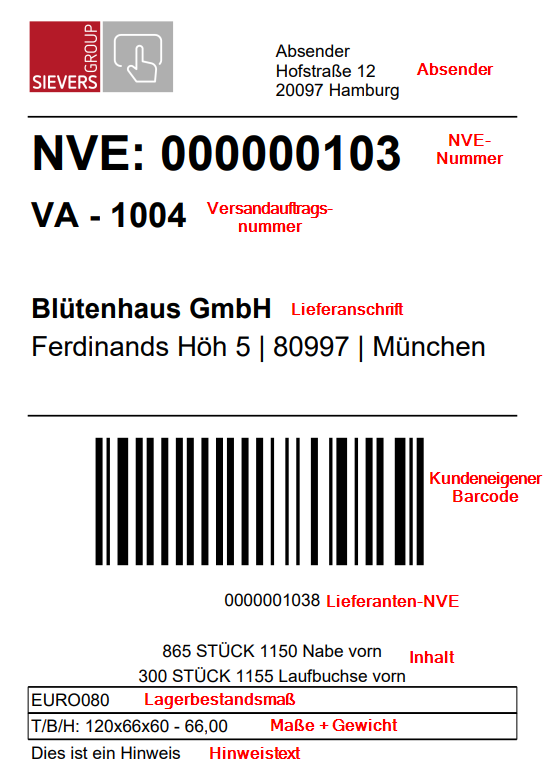

SSCC Label

  • Dimensions: 110x162mm

This label is used to mark finished packages. This allows the package and its contents to be identified both during loading and on arrival at the customer.

The order-related information on this label is either taken from the linked warehouse shipment or from the order or special order if the Load Carrier has already been assigned to the order in the warehouse receipt.

The last SSCC label printed is stored on the posted Load Carrier and can be accessed there.

Hinweis

If the order is linked to a shipping label service provider such as ECOMSUITE or ShipXpert via the shipping agent, a label generated by the shipping label service provider will be printed instead of the SSCC label.

The label contains the following information:

  • Sender
  • SSCC number
  • Shipping order number
  • {{Delivery address}}
  • Customer's own barcode / customer reference
  • Vendor SSCC
  • Up to two content items - otherwise package content list
    • If a PU unit of measure is entered for the item, the quantity is converted to this unit of measure
  • Inventory measure
  • Stock dimensions
  • Weight
  • Comment text

::: Note The dimensions, weight units and volume values take the setup and conversion of units into account. :::

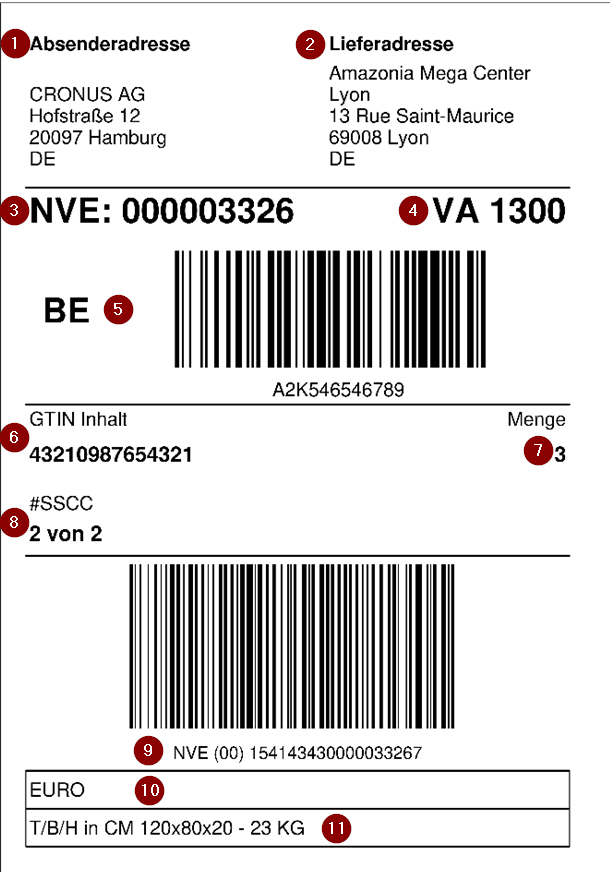

GS1 Label Amazon

If the Outgoing PTU/SSCC option is activated in the GS1 setup and in identifier 00 of the customer, this label is used when printing SSCCs for the customers set up in sales orders.

  1. Sender address
  2. Delivery address
  3. SSCC number
  4. Number of the source document
  5. External order number and barcode
  6. GTIN content
  7. Number of GTINs
  8. Number of SSCCs in this order
  9. SSCC number and barcode
  10. Inventory measure code
  11. Dimensions and weight
Hinweis

If several items are packaged in one SSCC, "DIVERSE" is shown at 6. and "*" at 7.

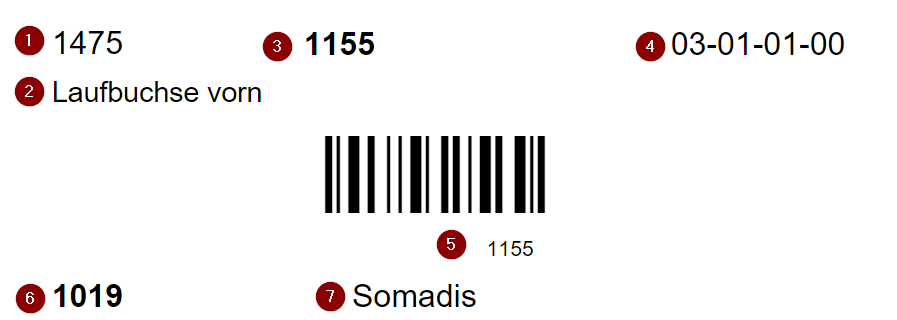

Optional picking label

This label can be printed in warehouse shipment to mark picked items. However, it is not usually required as the vendors/producers of the items have already marked them.

  • Dimensions: 90x35mm

  1. Number of pieces
  2. Item description
  3. Item no.
  4. Storage place of the item
  5. Barcode and item no.
  6. Source no.
  7. Customer/vendor name

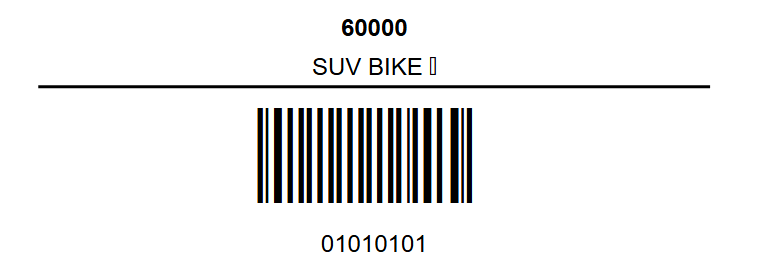

Picking Storage Place Label

This label is used to identify fixed picking storage places.

  • Dimensions: 90x35mm

It consists of

  • Item description
  • Item name
  • Barcode
  • Storage Place no.
