Setup and Usage

Once set up the solution automatically transfers the posting- and master data to the DATEV-Rechenzentrum when the SIEVERS DATEV exports are getting executed.

::: Attention Important Note About Access Authorization:

The SIEVERS DATEV Buchungsdatenservice automatically verifies that your DATEV client has the required authorization for the Buchungsdatenservice. This verification is performed with every authentication and before every data transfer.

If your client does not have a valid authorization for the Buchungsdatenservice, an error message will be displayed and data transfer will not be possible. In this case, please contact your DATEV service provider to activate the service. :::

Before you can start with the setup in Business Central, the DATEV client must be registered for the Buchungsdatenservice in MyDATEV. For this purpose, DATEV provides instructions in video and text form on the page Set up Buchungsdatenservice.

Hinweis

In BC 14 CU 1, the OAuthLanding.htm file on the server must be replaced with a newer version, e.g. from BC 14 CU 53, as only OAuth 1 but not OAuth 2 is supported in CU 1. Your Business Central partner can advise you on this.

The setup takes place on the page SIEVERS DATEV Posting Data Service in business central.

Setup Wizard

For initial setup, the SIEVERS DATEV Buchungsdatenservice Setup Wizard is available. It guides you step by step through the required configuration.

::: Attention A prerequisite for using the setup wizard is an existing SIEVERS DATEV setup. If no DATEV setup exists, an information message appears asking whether the DATEV App's setup wizard should be opened. :::

General

  • DATEV Setup No. Specifies the DATEV Setup No.
  • Status: The current status.
  • Send files while exporting: With this option you activate the data transfer during the SIEVERS DATEV export. If the option is enabled, the other fields of the setup will be read-only.
  • Clear Log after x Days: Specifies after how many days the log data will be deleted. Zero days: The log will never be deleted automatically. Otherwise a minimum of 14 days is expected by DATEV eG. You can find further information about the log in the section Service Log.
Hinweis

If you want to send the exported files yourself, you can also download them locally to your computer via Zip and Download Export files in the menu bar.

Authorization

  • Advisor No.: Enter the numeric code of your DATEV service provider here.
  • Refresh Token Expiration: Specifies the expiration date of the refresh token.
  • DATEV Company No.: You have received a company number from your DATEV service provider. Enter it here.
  • Token Expiration: Specifies the expiration date of the token.
  • Authorization time: Specifies the authorization time.

Authentication process

In order for the SIEVERS DATEV Buchungsdatenservice to be able to communicate with DATEV, a few authentication steps must be carried out.

  1. Activate the SIEVERS DATEV Buchungsdatenservice with DATEV advisor and company number at DATEV. Once this step has been taken, you or your tax advisor will receive login data (Smart Login), which is necessary for authentication.

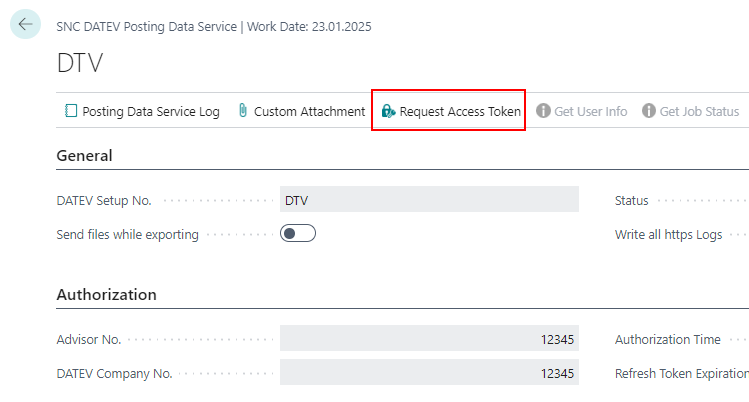

  2. Then select Request Access Token in the menu of the SIEVERS DATEV Buchungsdatenservice setup.

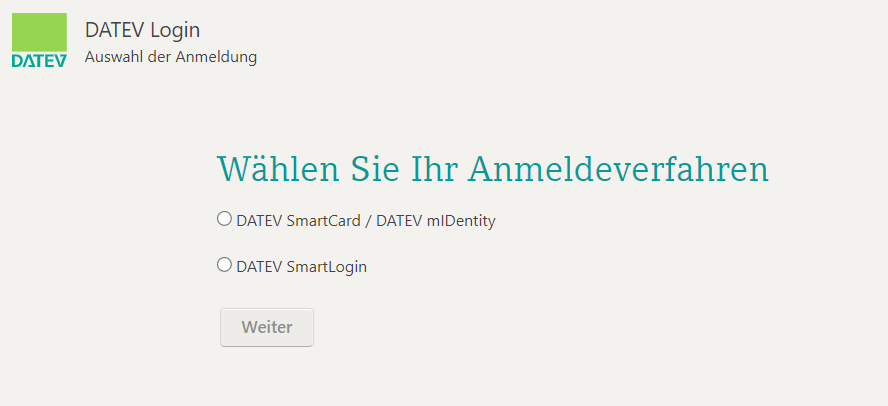

  1. When it comes to selecting the login procedure, now choose DATEV SmartLogin.

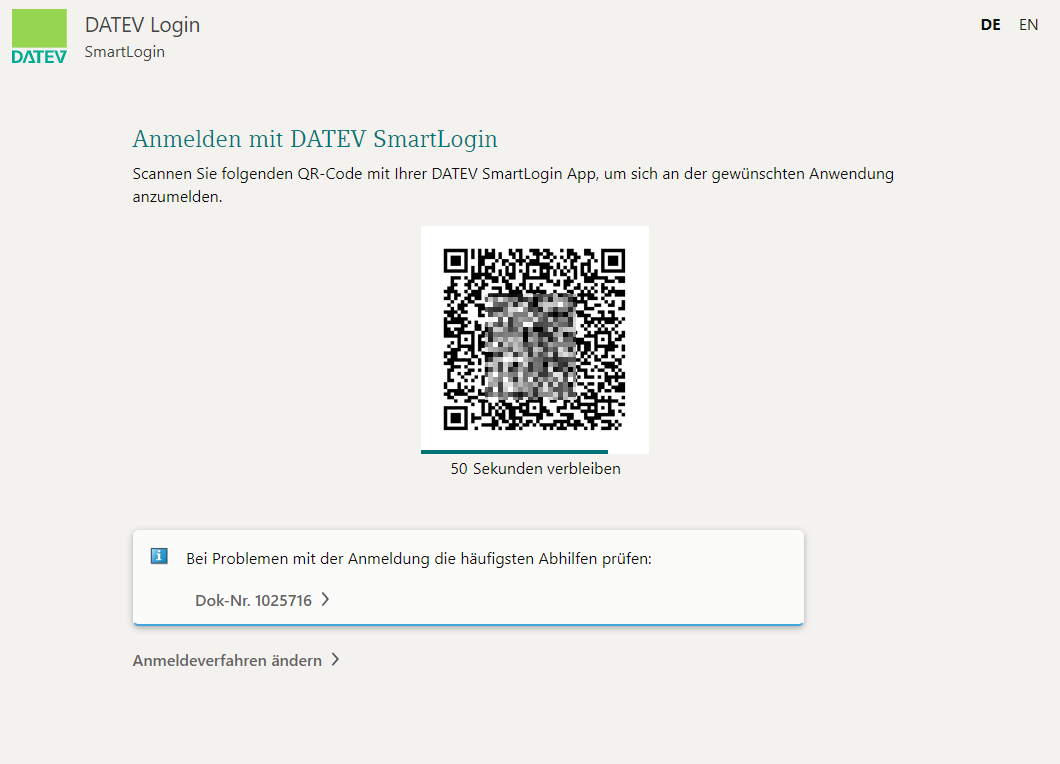

  1. Now log in using the SmartLogin app.

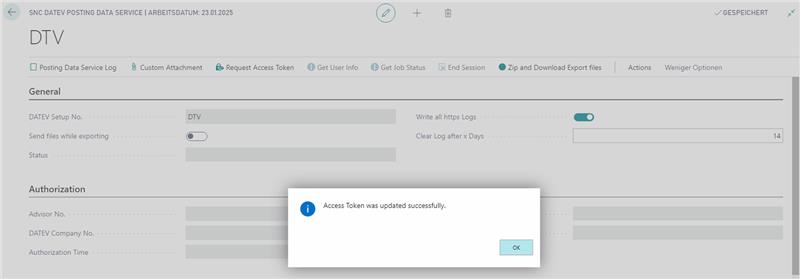

  1. A message then appears stating that the access token has been updated.

  1. After receiving the access token, the system automatically verifies that the specified data set (advisor and client number) has the required authorization for the Buchungsdatenservice. This verification ensures that only authorized clients can transfer data.

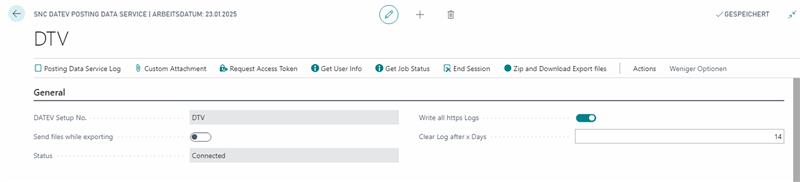

  2. If the authentication and authorization verification were successful, the status in the General area shows Connected.

Documents

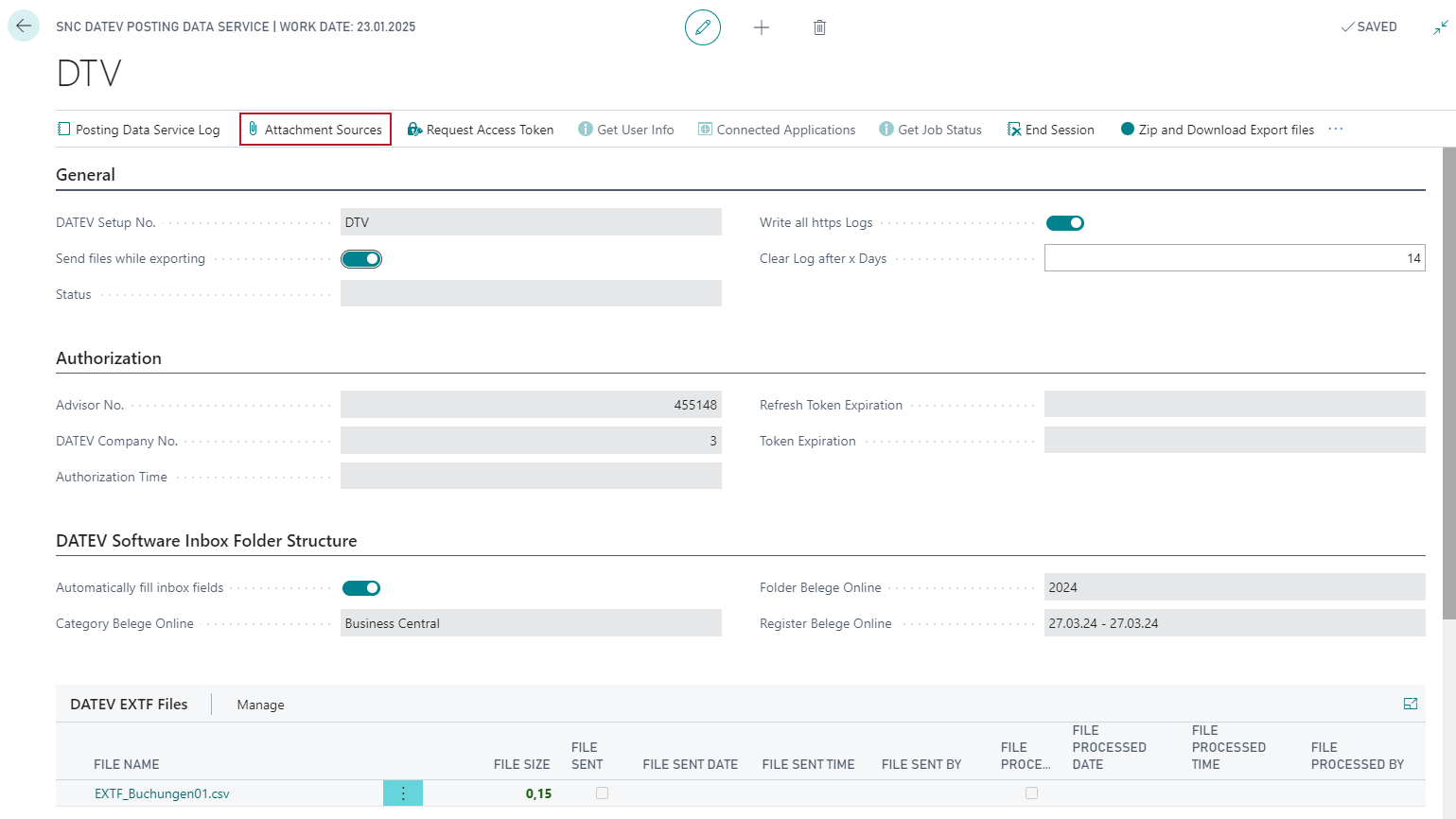

The sources for the attachments can be specified using the Attachment Sources button.

  • Export Document Attachments: If this option is enabled, any file attachments such as PDF files will also be exported.
Hinweis

Unallowed signs in the names of the document attachments will be replaced by underscore by DATEV. DATEV allows these signs in the names of the document attachments: Space &()+-._ 0-9A-Za-zÀÁÂÃÄÅÆÇÈÉÊËÌÍÎÏÐÑÒÓÔÕÖØÙÚÛÜÝÞßàáâãäåæçèéêëìíîïðñòóôõöøùúûüýþÿ

The following document types are supported:

  • posted sales invoices
  • posted sales credit memos
  • posted purchase invoices
  • posted purchase credit memos
  • posted service invoices
  • posted service credit memos
  • invoices from general journals
  • credit memos from general journals
  • invoices from purchase journals
  • credit memos from purchase journal

Document attachments may not exceed 20 MB. Depending on the file size, the number in the File Size field in the Exported Attachments and Attached Documents tables is coloured:

  • Up to 0.5 MB = green
  • 0.5 - 20 = yellow
  • More than 20 MB = red

If a file is larger than 20 MB, it is not exported and a log entry is created.

Provided that Export document attachments is activated, it is selectable what exactly the source of this attachment should be. Here you have the following options:

  • Document Attachment

  • Incoming Documents

  • Custom Table: For this purpose, the Custom attachment page must be filled out beforehand. See Custom attachment

  • Custom Event: With this option there is the possibility to fill the table DATEV Exported Attachments by yourself. You can find the corresponding sample code in section Custom Event

  • Transfer DATEV Document Type: If this option is activated, the DATEV document type “Rechnungsausgang” or “Rechnungseingang” for a posted purchase invoice will also be transferred when the PDF files are transferred. A check is made for the document types set up in the DATEV software. The transfer of the DATEV document type is neither prohibited nor recommended by DATEV.

  • Only marked Document Attachments: With this indicator you determine for the supported document types whether only documents marked with Use for DATEV export are to be part of the export. You can set this marker called Use for DATEV export directly in the document in the attachments - see Service documents. This indicator is automatically set in the attachment after posting from BC 17 onwards.

  • Posting

    • Use these option buttons (e.g. Attach Sales Invoice as PDF) to determine which reports should be automatically exported as PDF file attachments to documents.

In general, all switches can be set for a document. As soon as an attachment is found in the form of a PDF file, it will be used for export. As described above, the order of checking the BC tables is first the document attachments, then the incoming documents, then the custom table and then the custom event.

  • Automatically fill inbox fields: The next three fields mentioned must be filled either manually or automatically.
    • When filling automatically, the field
      • Folder Belege Online is entered with Business Central.
      • Category Belege Online is entered with the year of the DATEV export carried out.
        • e.g. 2024
      • Register Belege Online is entered with the period of the export.
        • e.g. 01.01.24 - 31.12.24
  • Folder Belege Online: The first level of document storage of Belege Online.
  • Category Belege Online: The second level of document storage of Belege Online.
  • Register Belege Online: The third level of document storage of Belege Online.

::: Attention Before exporting and sending the data via the Buchungsdatenservice, it is checked whether the three fields were actually filled in manually. Otherwise the export cannot be carried out. :::

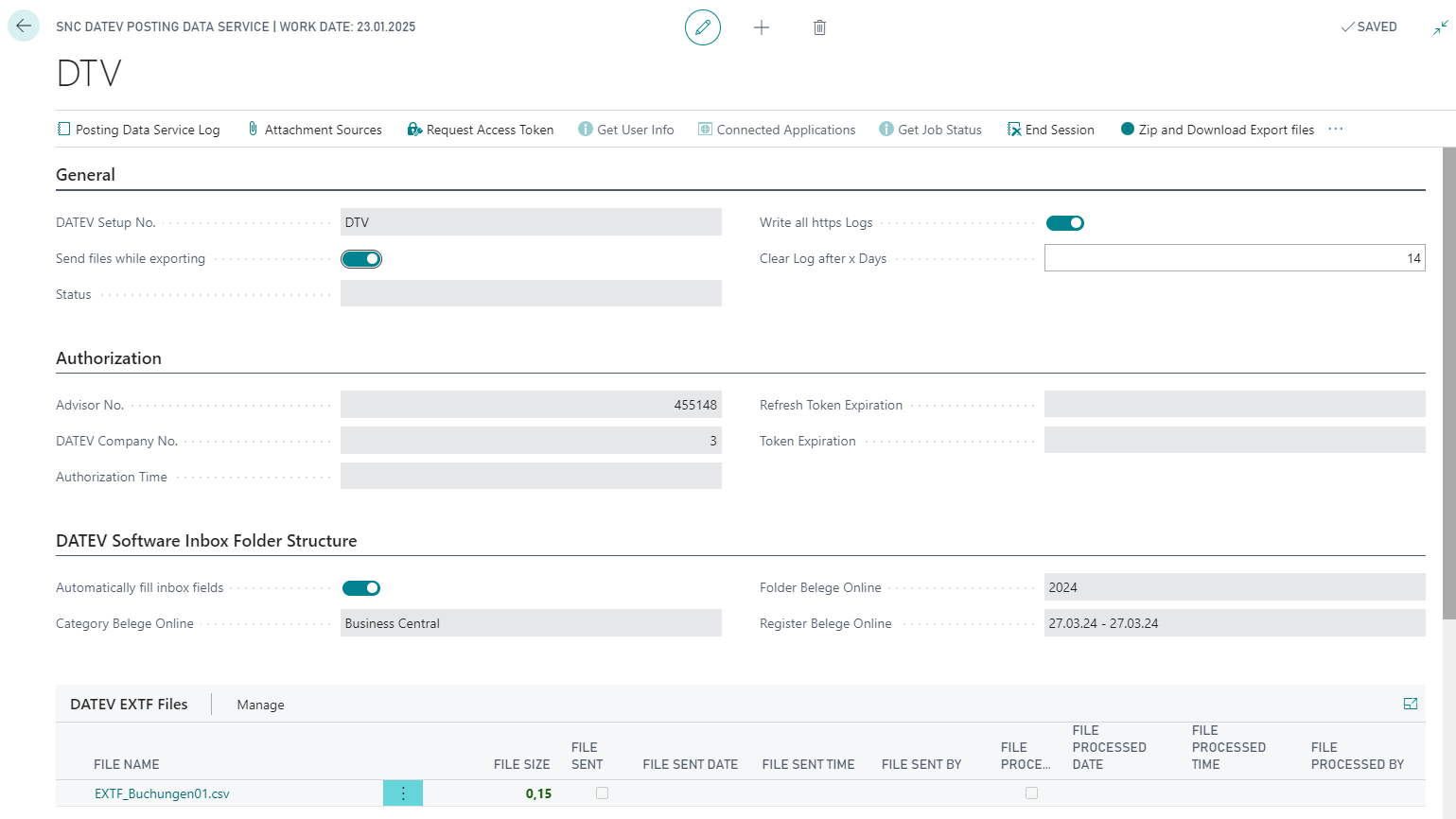

In the lower area of the documents you can find the sent DATEV EXTF files and the exported attachments - for example PDF files of the invoices. On the right side of the table you can see if the respective file has already been sent and processed.

Via Send File to DATEV Data Center you are able to resend files to the Data Center again.

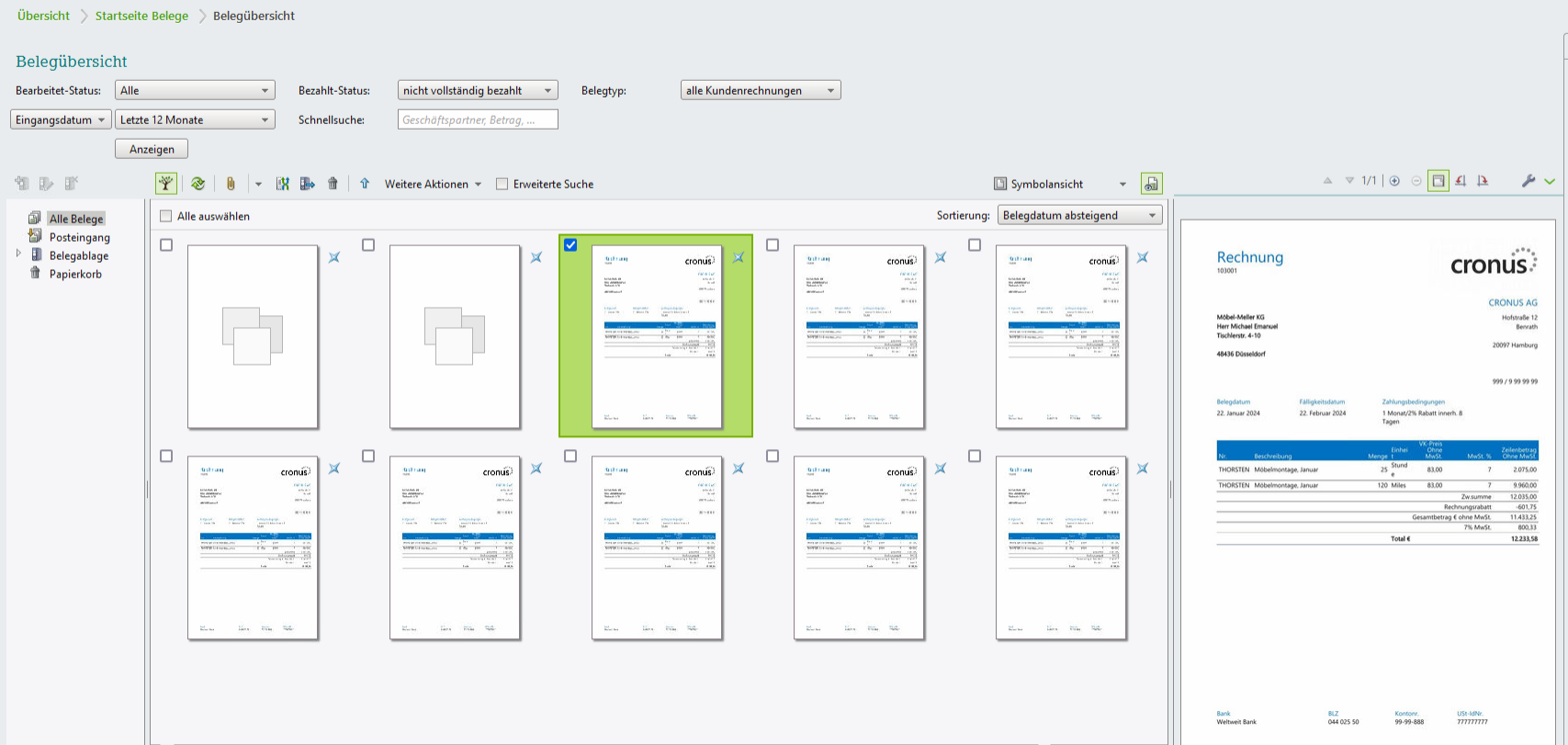

The mentioned PDF files can be seen in the document overview of Unternehmen Online after the export.

Connection URLs

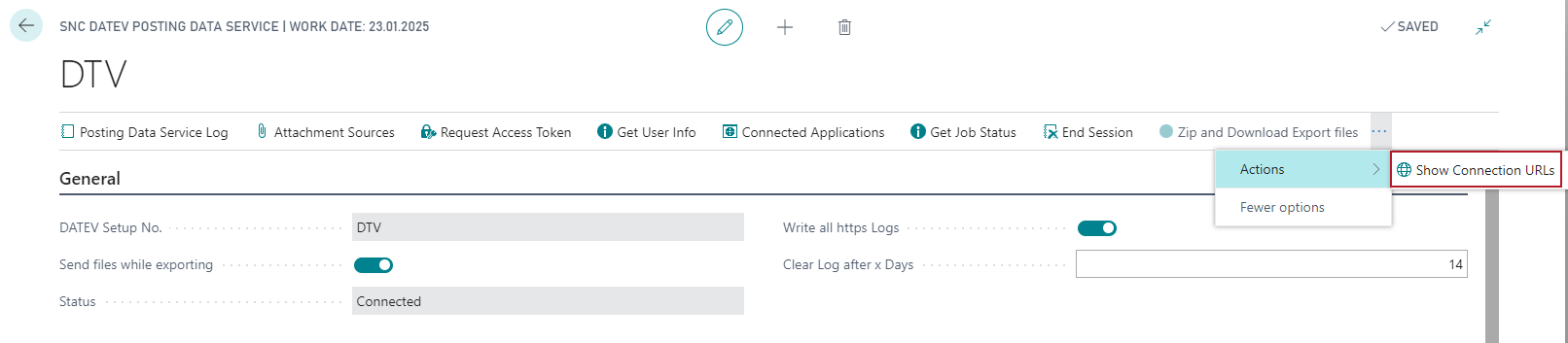

In the DATEV Buchungsdatenservice setup, you can also view all connection URLs and customize the State redirect URL as you wish. However, you must first make this section visible. To do this, select the Display connection URLs action in the menu.

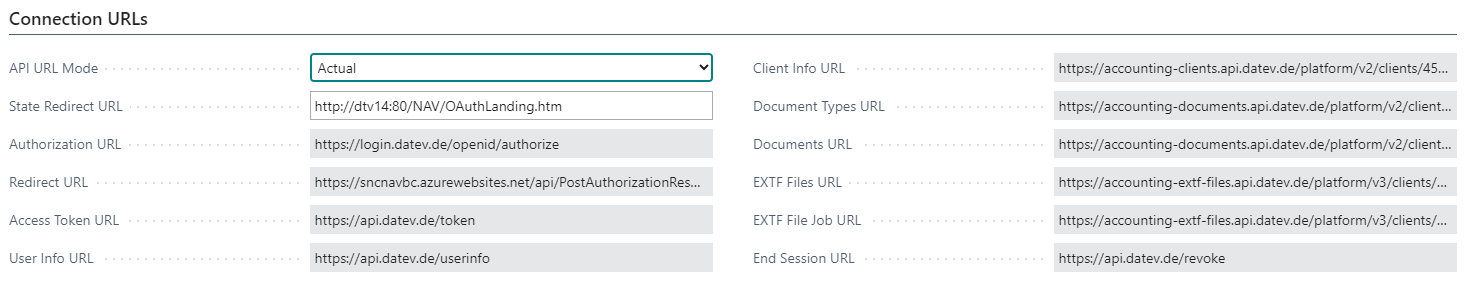

The new section then appears:

These fields are primarily used to provide information in the event of connection problems. The State redirect URL can be changed for special systems.

Service Log

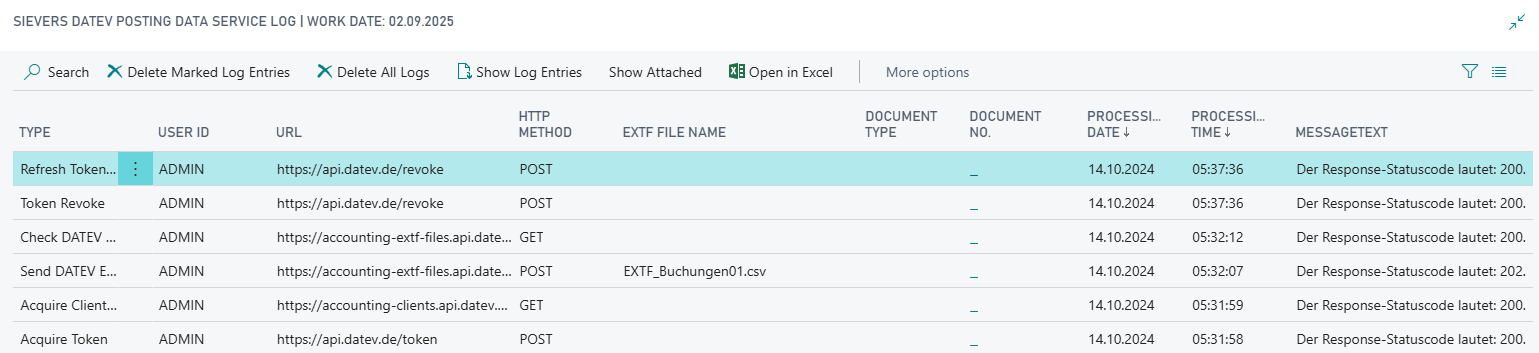

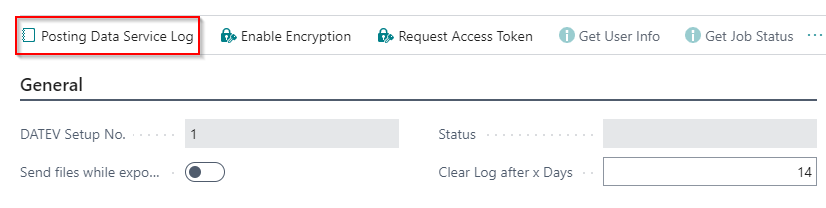

Via the DATEV Posting Data Service Log you are able to view a lot of information about the communication the the DATEV Rechenzentrum. In addition, any error messages are displayed in this log. In the menu area of the log you can also view further information about transferred data.

If data from the Buchungsdatenservice is missing during the export, it will be noted in the SIEVERS DATEV log. This also applies to custom events and custom tables.
